Phoenix Contact 2866776 QUINT-PS/1AC/24DC/20 – Power Supply

$360.00

  • Número de pieza: 2866776 QUINT-PS/1AC/24DC/20
  • Fabricante:Contacto en Phoenix
  • Disponibilidad: en stock
  • Tiempo estimado de entrega: Normalmente se envía en 1-5 días laborables
  • Estado: Nuevo
  • Garantía :12 meses

Ficha técnica del producto

SKU: 2866776 QUINT-PS/1AC/24DC/20 Categorías: , Etiqueta:
Descripción

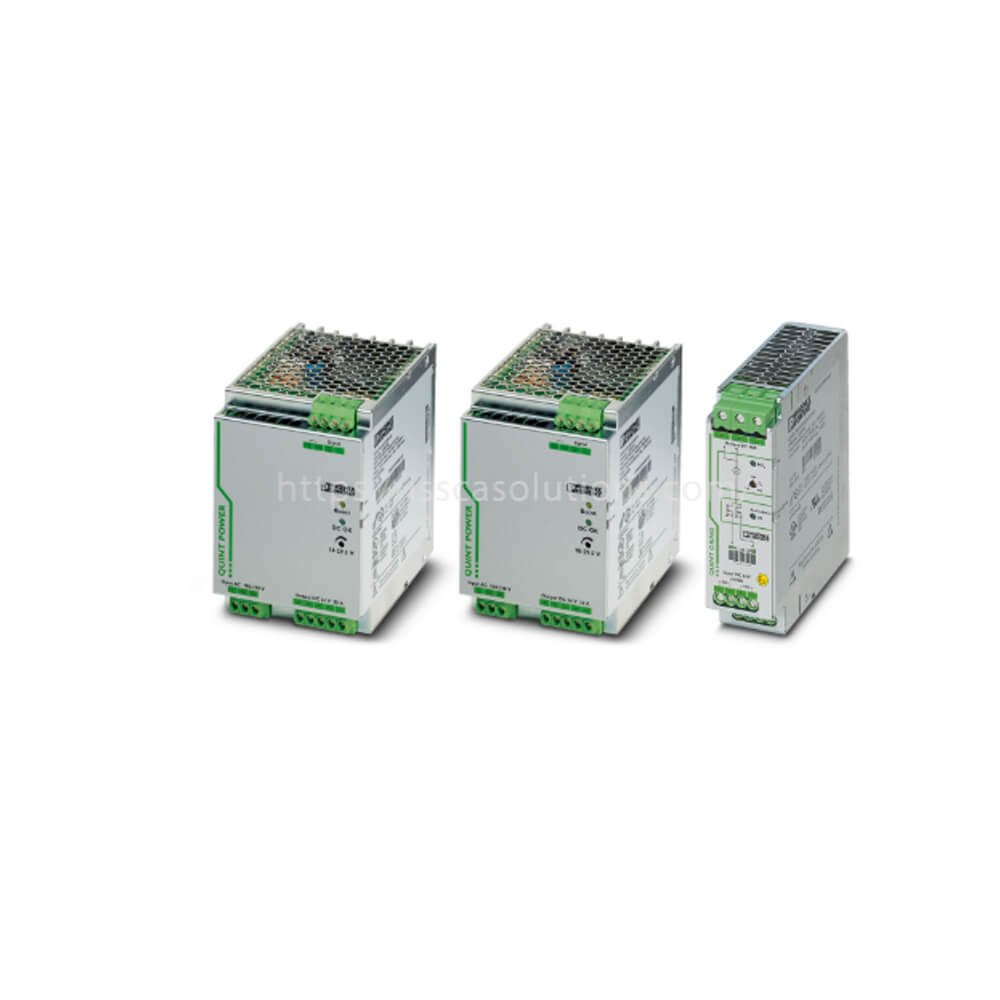

QUINT POWER Single and Three Phase Power Supplies

QUINT POWER generation maximizes the availability of your plant. With some featuring the SFB technology (Selective Fusebreaking Technology), the 6-times nominal current for 12 ms, can be the first time standard circuit breakers reliable and quick trigger. Faulty current paths are selectively shut down, the error is limited and important Plant parts remain in operation.

Features and benefits:

Selective Fusebreaking Technology (CRC Technology)
Worldwide use through wide-range input for DC and AC networks
Reliable start difficult loads with static power reserve POWER BOOST
High reliability through high MTBF> 500,000 h, long power failure bridging times > 20 ms, high voltage to 300 Vac
Preventive function monitoring DC-OK by professional signaling
Slim design
Conformal coating for extreme environments (Some models)

How do I wire a DIN rail power supply?

The QUINTPOWER power supply unit’s feature terminal blocks on both the top & bottom of the unit. You’ll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Nota

665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology

Homologaciones

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

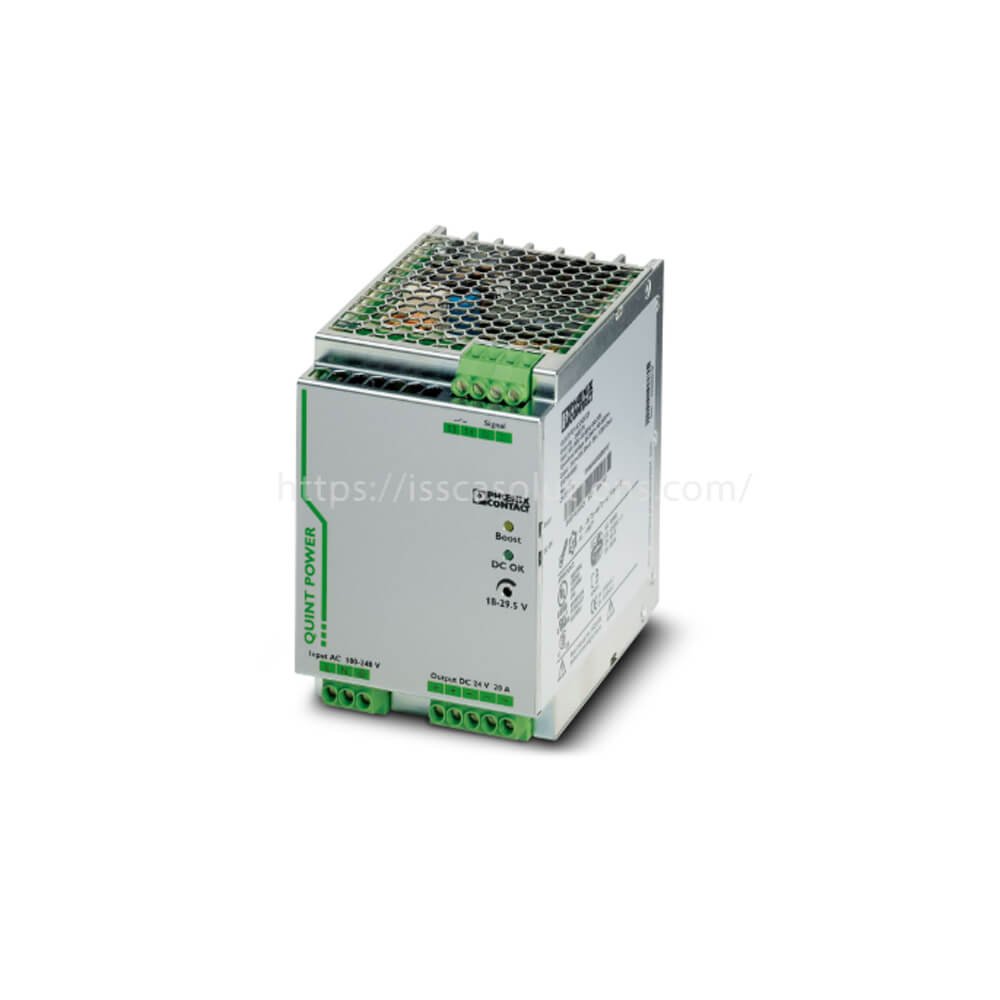

Phoenix Contact Single-Phase Power Supply, 24V DC, 20A – QUINT-PS/1AC/24DC/20 – 2866776

Maximise plant availability with this feature-rich power supply from Phoenix Contact. It allows you to individually configure signalling thresholds and output voltages or adjust characteristic curves. The unit includes near field communication (NFC) technology, so you can quickly and conveniently configure it using a computer or mobile smart device.
Selective fuse-breaking technology efficiently locates and switches faulty current paths while other areas of your system remain in operation. This reduces downtime and lessens the risk of electrical surges, which could cause damage to sensitive equipment. The robust unit is protected against dust, corrosive gases and humidity, as well as failures caused by corrosion-related creepage currents and electrochemical migration.
This device is designed for DIN rail mounting and contains screw connectors for simple yet secure cable connections. It’s a good power-supply choice for the automotive and shipbuilding industries.

Features & Benefits

• Preventative function monitoring that reports critical statues before errors occur
• Extended service life of over 500,000 hours
• Static power reserve for the reliable start-up of difficult loads
• Adjustable voltage range with a minimum output of 18V DC and maximum output of 29.5V DC
Información adicional
Peso 3 kg
Dimensiones 30 × 15 × 15 cm
