Tackling the challenge of miniaturization, Pepperl+Fuchs introduces the R305 area sensor, engineered for the precise and reliable detection of micro-sized and irregularly shaped items.

Elevate Your Automation: Detect the Unseen with Unmatched Precision.

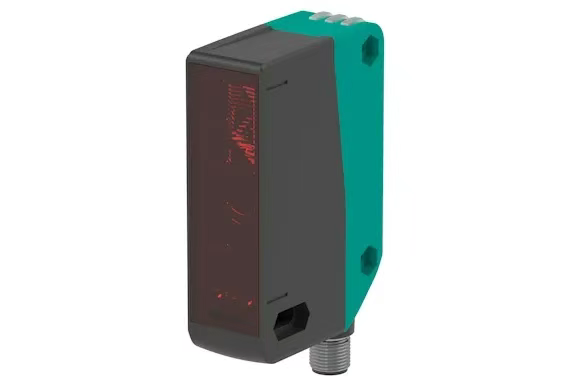

In industrial automation, reliable object detection is non-negotiable. Meet the game-changer: the new R305 Retro-Reflective Area Sensor from Pepperl+Fuchs. Engineered for complex challenges, it reliably detects elusive objects as shallow as 2 mm, regardless of their shape. With a customizable light band (60 mm high, 4 m range), integrated height measurement, and IO-Link connectivity, the R305 delivers a flexibility and performance that leaves traditional sensors behind.

Reliable detection, even if the object is small or irregularly shaped

Ensure Flawless Operation with Uncompromising Detection. The R305 Retro-Reflective Area Sensor overcomes the limitations of conventional models. Its wide light band ensures reliable detection of narrow and misaligned objects, while providing a stable, single trigger signal on irregular contours that would cause false readings with traditional sensors.

Traditional reflector sensor

Using a point beam may result in incomplete detection of objects or significant delays. When facing irregular contours, it is easy to trigger multiple false alarms.

Regional reflector plate sensor

With a wide optical band, it can reliably detect the edges of narrow objects, effectively avoiding multiple false triggers.

Widely applicable and more flexible

The R305 Retro-Reflective Area Sensor delivers exceptional flexibility with five individually configurable 12-mm light beams. Users can disable specific beams to mask out interferers or tailor the total height for narrow openings. With adjustable contrast for reliable detection of materials like clear glass, it offers two preset modes: standard resolution (up to 4m range) or high resolution (for objects from 2mm). Parameters are easily set via the onboard controls or finely optimized via the IO-Link interface for superior process control.

IO Link interface empowers process optimization and predictive maintenance

The R305 combines operational efficiency with advanced intelligence. Use presets for immediate results or unlock deep customization via IO-Link. Beyond detection, it performs synchronized height measurement. This data, transmitted via IO-Link, enables analytics for sorting and process optimization. Furthermore, the parallel streaming of measurement and status data provides a foundation for predictive maintenance strategies.

Easy debugging and low maintenance cost

Engineered for effortless integration and sustained performance, the R305 features a streamlined “Easy Alignment Mode” for intuitive setup, assisted by a yellow alignment LED. It offers flexible mounting, including a space-saving 90° side-view version. The sensor ensures operational continuity with its “Auto-Teach” function, which automatically adapts the settings after a power cycle. Furthermore, its intelligent signal compensation actively counteracts performance degradation from dust, dirt, or variable ambient light, guaranteeing long-term stability and reducing maintenance.

Feature Overview

highlight

• Stable leading-edge detection, unaffected by object shape or position.
• Exceptional sensitivity for detecting objects as small as 2 mm.
• High application flexibility with independent beam masking and adjustable MDO.
• Rapid setup using presets and the convenient calibration mode.
• Reduced maintenance through Auto-Teach and intelligent signal compensation.
• Integrated height measurement for sorting, grading, and monitoring applications.
