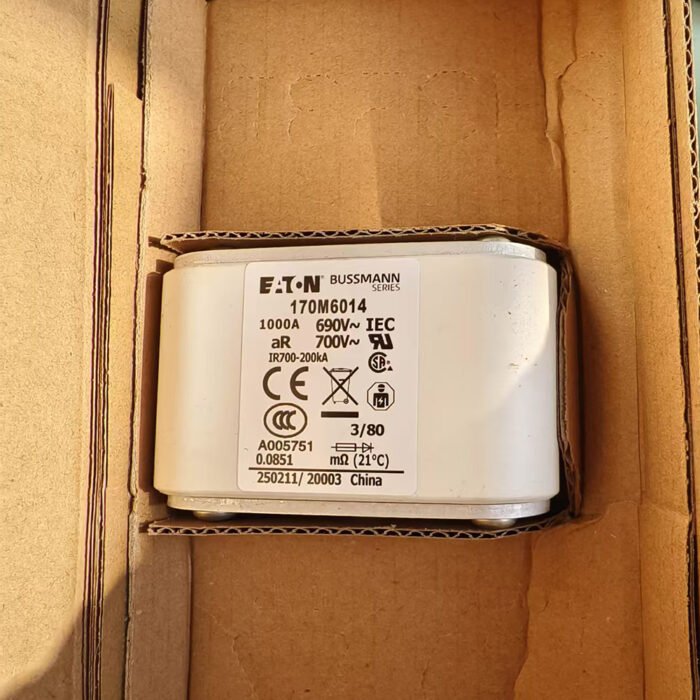

Bussmann 170M6014 Model code: FUSE 1000A 690V 3/80 AR UC
$230.00
No available stock, delivery time 6-8week
Condition: Brand New
Warranty :12 months
お取り寄せができます
General specifications
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M6014 |
| UPC | 051712792059 |
| EAN | 5996516017296 |
| Model Code | FUSE 1000A 690V 3/80 AR UC |
| Product Length/Depth | 168 mm |
| Product Height | 76 mm |
| Product Width | 95 mm |
| Product Weight | 892 g |
| Compliances | CE Marked RoHS Compliant |
| Certifications | IEC Rated UL Recognized |
Electrical data
| Amperage Rating | 1000 A |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Voltage type | AC |
| Clearing (I2T) | 945000 at 660 V |
| Pre arc (I2T) | 140000 |
| Watt losses | 125 W |
| Breaking capacity | 200 kA |
| Class | Class aR |
Product specification
| Fuse size | 3 |
| 重さ | 1 kg |
|---|---|
| サイズ | 20 × 15 × 15 cm |
